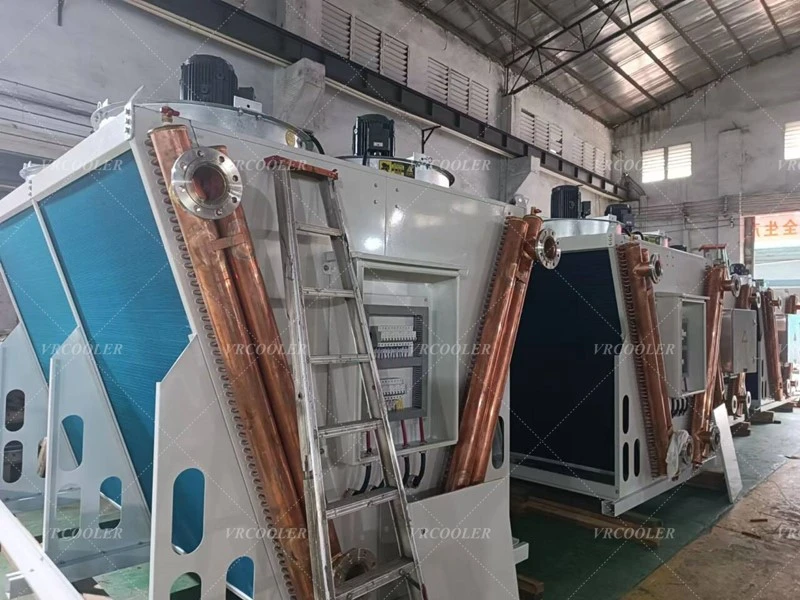

VRCOOLER Custom V-type Dry Cooler 5MW Gas Gen-set Chaw Taws Teeb Cua Txias
Kev cai HT-LT dual-circuit tej thaj chaw deb qhuav txias rau5 MW roj cav generator / CHP cog, rau natural gas, biogas, landfill gas nruam-khiav fais fab tuag. Nws ua hauj lwm raws li kaw-voj cua-txias cua sov rejection chav tsev, tsis muaj cua txias ntauwd yuav tsum tau, xoom dej evaporation poob.
Ob qhov kev ywj pheej Hydraulic-Separate Circuits
HT Circuit Court (Jacket Dej)Dissipate khib nyiab cua sov los ntawm lub cav lub tog raj kheej lub tsho & lub tog raj kheej taub hau. Kev khiav hauj lwm ntau yam: inlet 85-95 degree, qhov hluav taws xob 75-85 degree. Guarantees engine puag-load ruaj khov kub tswj.
LT Circuit Court (Chaw Cua / CAC + Pab Txias)Cools turbo charge-air cooler, lube roj kub exchanger thiab gas cooler. Kev khiav hauj lwm ntau yam: inlet 45-55 degree, qhov hluav taws xob 35-42 degree. Stabilize intake-air temperature kom optimize combustion, txo emission thiab txhim kho lub cav tso zis.
Main Tsim nta
V-hom / Kab rov tav txee qauv xaiv yeem, Sab nraum zoov-qib txee los ua ke, tej thaj chaw deb-mounted deb ntawm lub cav nrog, txuag chaw cog chav.
Finned-tube coil: tooj liab tube-aluminium fin (SS304 / SS316 fin xaiv tau rau ntug hiav txwv / corrosive site). Kev cai raj kab & fin qhov sib nrug, tiv thaiv-clog rau plua plav biogas cog ib puag ncig.
Ntau yam EC-variable-speed axial kiv cua, IE3 high-efficiency lub cev muaj zog, IP54 / IP65; tawg-pov thawj lub cev muaj zog xaiv tau rau thaj tsam gas-hazardous. Txhua lub voj voog tuaj yeem ua tus kiv cua ywj pheej hloov kho kom haum rau qhov ntsuas kub.
30% ntxiv thermal kev nyab xeeb margin rau tag nrho-load peak rejection, ua hauj lwm zoo nyob rau hauv siab ambient kub thiab high altitude tej yam kev mob.
Kaw glycol-dej circulation system, tiv thaiv-freezing rau txias-climate installation. Adiabatic pre-cooling ncoo xaiv tau rau thaj tsam kub-kub los txhawb kev ua haujlwm rau lub caij ntuj sov.
Ua kom tiav flanges, ntws-vent ports, lifting lugs, vibration-damping interface rau qhov chaw installation.
Core Zoo
✅ Tsis muaj cua txias ntauwd, siv dej tsawg kawg nkaus, tsawg dua scaling & lom fouling txaus ntshai
✅ HT & LT loops tsis cuam tshuam, phim thawj lub cav dual-txias yuav tsum tau
✅ Kev saib xyuas qis rau kev ua haujlwm tas mus li 24/7 CHP
✅ Saj zawg zog layout: ru-mount, av-stand, sab nraum lub hwj chim-tsev installation
✅ Kev cai tsim raws li lub cav cua kub-rejection cov ntaub ntawv, site ambient mob, suab nrov txwv thiab hneev taw txwv
Yuav tsum muaj cov ntaub ntawv nkag rau kev cai Quotation
HT tag nrho cov cua sov load, LT tag nrho cov cua sov load, txaus tus nqi & tso cai poob siab ib lub voj voog
Tsim ambient kub, qhov siab, qhov chaw corrosion mob
Glycol concentration, tsim kev ua haujlwm siab
Fais fab mov, suab nrov yuav tsum tau, dimension txwv
